Solar Generator Charge Controller Auto Light Control Circuit Switch Lithium Battery Charging Board Diy Courtyard Street Light
$6.00
Product Description
Package list:
1pc*Solar control switch circuit board
Product selling point:
1. Using high-quality materials, the quality is guaranteed
2. Photovoltaic solar charge and discharge automatic control switch, suitable for a variety of battery
voltages
3. Simple and portable to use
4. Charge during the day, automatically turn on the light when it is dark, and automatically turn off the
light when it is bright
5. The low-power controller is suitable for solar garden lights, lawn lights, colorful string lights, small
street lights, etc.
Features:
Charging in the daytime, automatically turning on the lights at night, and automatically turning off the
lights at dawn, the output voltage is the output voltage when the battery has no voltage. The circuit
controls the output by detecting the change of the voltage generated by the solar panel, without the
need for photosensitive elements; it is suitable for a variety of batteries.

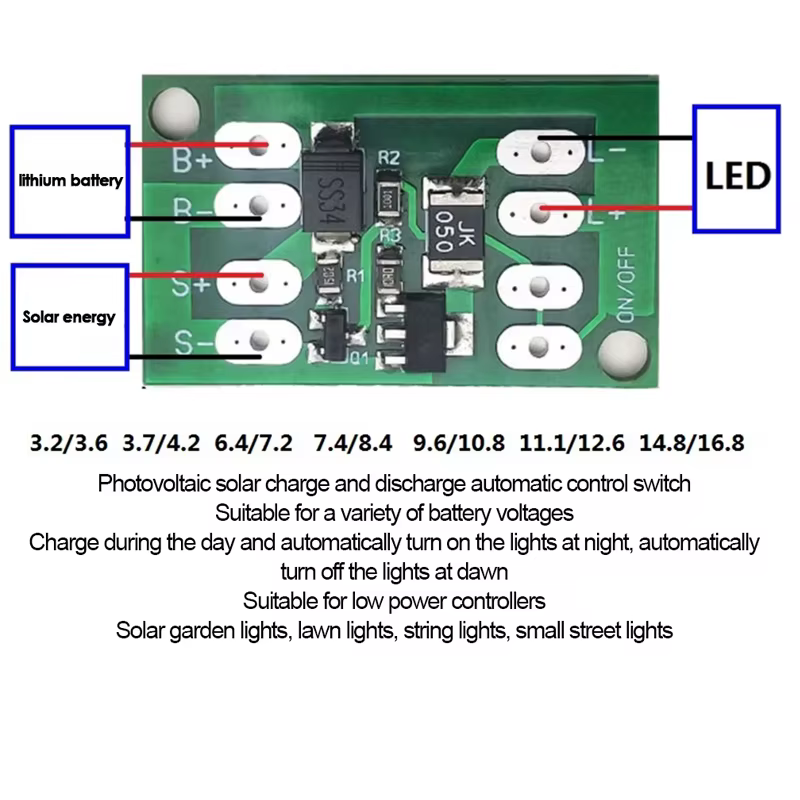

Wiring method:
1.B+B- connected lithium battery
2. S+ S- connect to solar panel
3. L+L- output
Wiring sequence:
1: Connect the lithium battery, the battery must have the corresponding protection board
2: Connect to the LED, the lithium battery has power and the LED lights up
3: Connect to the solar panel. At this time, the solar panel is illuminated with light, and the LED is off,
and the LED is on without light.
The switch can be installed if it needs to be turned off at night or the switch interface SW has been
reserved for transportation and storage.
Precautions:
1: The stable working output current of the control board cannot be greater than 600ma, otherwise it
may cause output protection
2: Charging and anti-backflow without overcharge and overdischarge protection Lithium batteries must
be used with corresponding protection boards (mobile phone batteries all have 3.7v protection, and
more than 18650 do not have them. 3.7v protection boards cannot be used in series)
3: Pay attention to waterproofing and insulation
4: LED lamps cannot use boost drive
5: The battery voltage of the controller is the output voltage, unlimited current and voltage limiting,
2V3V LED lamp beads cannot be used directly, it needs to be driven by a step-down constant current or
a series current limiting resistor, and the output current is the maximum working current, not constant
current
Special Note:
1: The output power is the actual power, please confirm the actual power consumption of the load
before use
2: Direct access to 3Vled may damage the controller or LED
3: The battery must be equipped with a protective plate, and the battery voltage must match the open
circuit voltage of the solar panel
